DX WORLD ELECTRONICS
ZEUS TFT DISPLAY KIT WITH REMOTE CONTROL


KIT INCLUDE:
- 5 or 7'' TFT TOUCH SCREEN DISPLAY NEXTION INTELLIGENT 800x480
- ZEUS DISPLAY CONTROLLER WITH REMOTE CONTROL
- UNIVERSAL BAND DECODER V2.0
- RF DELAY BOARD

POWER SUPPLY: 12-14V
BAND: 160-6M

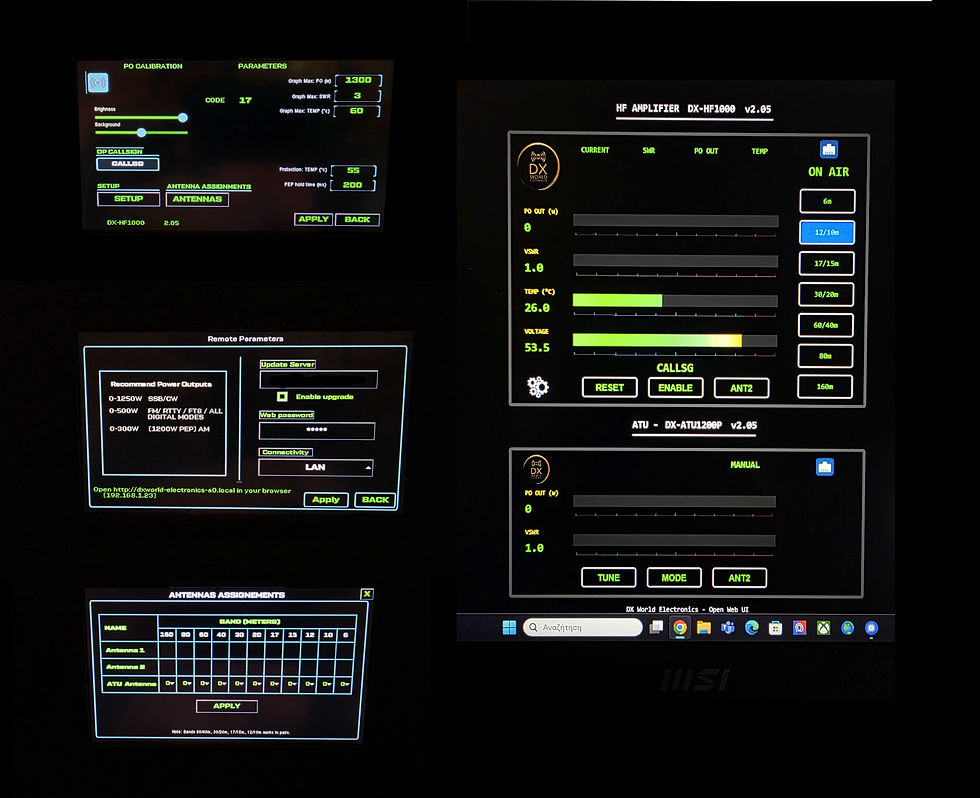

-REMOTE CONTROL WITH WEB SCREENS
-ON-LINE/MANUAL FIRMWARE UPDATES
-DX WORLD ATU ZEUS DETECTION AND CONTROL THOUGH WEB.
-LAN INTERNET CONNECTION
-ENABLE/STAND-BY FUNCTION.
-PROTECTION RESET FUNCTION.
-2 ANTENNA SELECTION WITH TOUCH. BUTTON ON MAIN SCREEN DISPLAY.
-AUTO ANTENNA SELECTION PER BAND.
-ANTENNA POWER PROTECTION PER BAND.
-INTEGRADED VPN (WireGuard) – SECURE REMOTE ACCESS
-TEMPERATURE MONITOR AND PROTECTION.
-I/P/SWR INDICATION FOR PROTECTION ERROR.
-PWR / SWR METER.
-VOLTAGE METER 0-60V MAX.
-AUTO BAND SWITCH FUNCTION FROM BAND DECODER BOARD.

-RF POWER INDICATION CAN SET BY USER ON MENU SCREEN OF DISPLAY.
-TEMPERATURE PROTECTION CAN SET BY USER ON MENU SCREEN OF DISPLAY
(55c TEMP PROTECTION AS DEFAULT).
-CALLSIGN INDICATION ON MAIN SCREEN IF DESIRED CAN ADDED BY USER ON MENU SCREEN OF DISPLAY.

BOARDS ARE ASSEMBLED AS IN PHOTOS.
FOR MORE INFORMATION PLEASE CONTACT US.

FOR AMPLIFIER PROTECTION YOU WILL NEED PROTECTION BOARD

BOARDS SIZE
CONTROLLER: 145x77mm
DECODER: 100x100mm
RF DELAY: 50x45mm
